41007501600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine

Name: 41007501600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine
Brand: Rensolin
Price: 2 USD

China 4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine wholesale

Place of Origin : China

Brand Name : Rensolin

Packaging Details : Wrapped film or wooden box

Supply Ability : 300Sets/Month

Price : $2,800.00 - $5,800.00/sets

Certification : CE,ISO

MOQ : 1Set

Delivery Time : 5-7days

Payment Terms : T/T

Work piece Thickness : 10-60mm

Work piece Delivery Speed : 12-20m/min

Gross Power : 9kw

Rolling Edge-banding Belt Thickness : 0.4-3mm

Pressure : 0.6-0.8mpa

Port : Qingdao,China

Contact Now

Products Description

4100*750*1600mm Woodworking PVC Melamine Board Double Trimming Edge Banding Machine

350AD Functions

Step1: Glue and Pressing

The glue mechanism adopt a special structure to gelatinize the plates and coating materials uniformly, ensure a more solid
conglutination.

Step2: End Cutting

The end trimming mechanism through a high precision linear guide rail, adopt automatic tracking and high-frequency motor fast
cutting structure to ensure the cutting surface smoothly.

Step3:Rough Trimming

Comes with flat knife which can prevent thin veneer from cracking. This can reduce the cutting forces, wear and tear of fine trimming cutter.

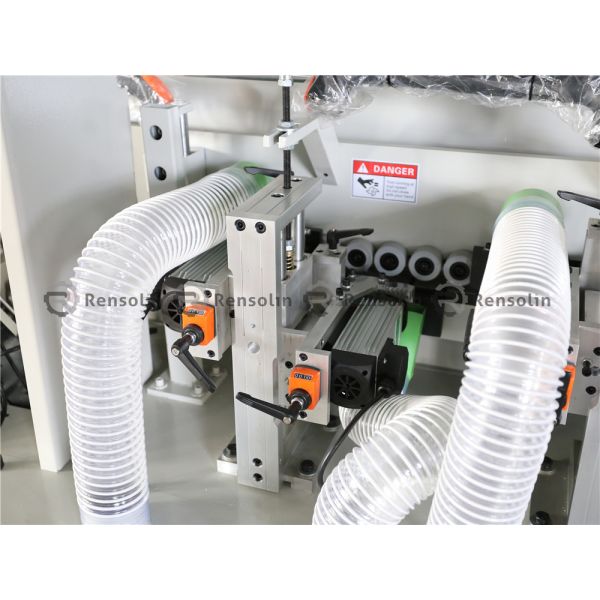

Step4: Fine Trimming

Used for cutting the excess edge materials,adopt automatic tracking and high-frequency motor fast cutting structure to ensure the trimming plates smoothly.

Step5: Scraping

For a perfect finishing of the applied edge.

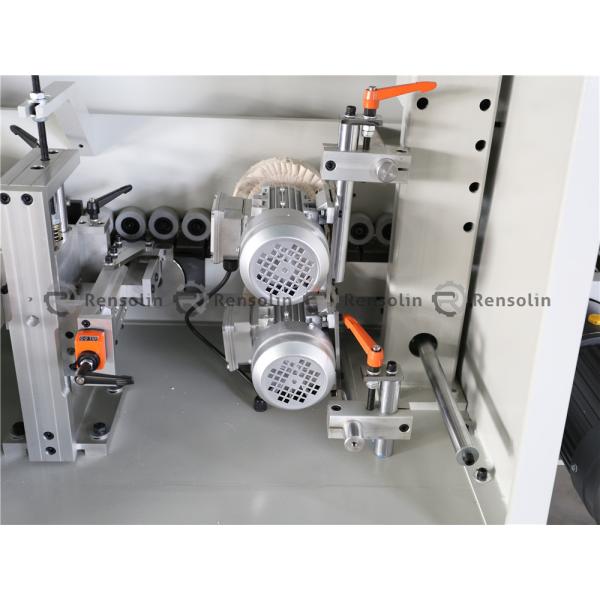

Step6: Buffing

Adopt the board processed by two cotton polishing wheel, by end-polishing to make the edge side even more smoother surface.

Machine Application

Model	RSL350AD
Name	Full Automatic edge banding machine
Panel thickness	10-60mm
Belt thickness	0.4-3mm
Min. width of panel	>=80mm
Min. length of panel	>=120mm
packaging size	4100mm750mm1600mm
Feeding speed	12-20meters/min
Total power	9kw
Air pressure	0.6-0.8 Mpa
Voltage	380V/50HZ/3phase
Weight	1400KG

product advantages

Electric Wires

Use imported motor and high quality electronic partsProduct seriation, multi-choice for customers

Power off switch and Phase sequence protector

Avoid accidents that may be caused by the reversal of the machine installation, protect the safety of workers, and ensure the service life of the machine..

Transformer

Voltage transformation, current transformation, impedance transformation, protect the machine voltage stability.

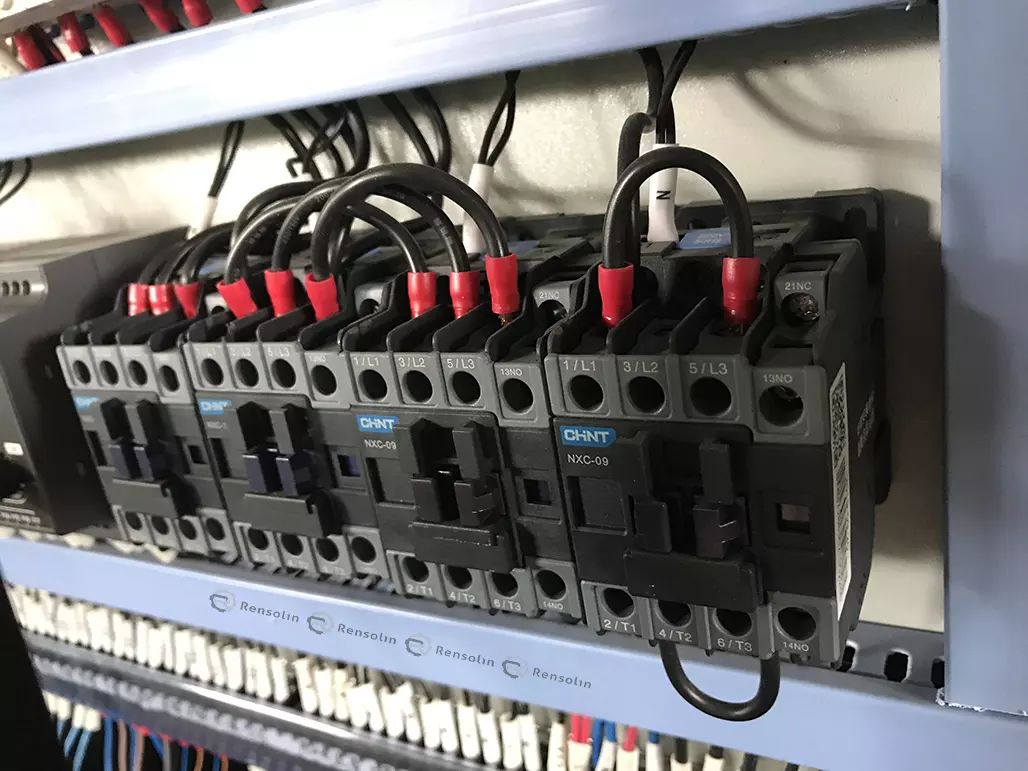

Contactor

Switch on and off the circuit, low voltage release protection.
